Specification

Lifecycle-Active

Distrib. Inventory-No

RAID-on-Chip Controller-LSISAS3108 dual core RAID on Chip (ROC)

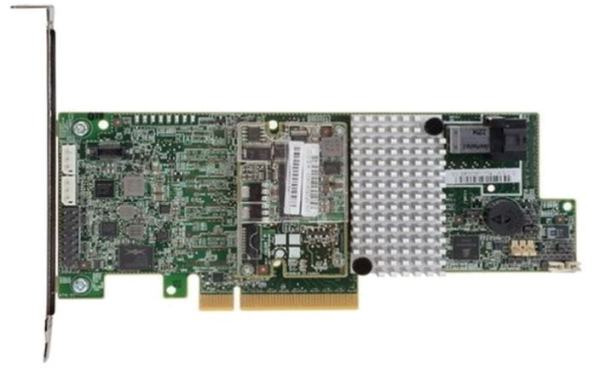

What's in the boxMega-RAID SAS 9361‐4i, QIG, LP bracket

Generation-12 Gb/s

RAID Management Software-LSA (LSI Storage Authority), MegaRAID Storage Manager, Stor-CLI (command-line interface), CTRL-R (BIOS configuration utility), HII (UEFI Human Interface Infrastructure)

Cache Protection-Optional CacheVault Flash Module (LSICVM02) Includes CVFM04, CVPM02, mounting clip, and cable

Physical Dimensions6.6" x 2.536" (Low-Profile)

Host Bus Typex8 lane PCI Express® 3.0

Cache Memory-1GB 1866MHz DDRIII SDRAM

Internal Ports-4

Data Transfer Rates-Up to 12Gb/s per port

Devices Supported-Up to 128 SAS and/or SATA hard drives and SSDs

Internal Connectors1 HD Mini-SAS SFF8643 (Horizontal mount)

MTBF1,343,187 hours

Operating Temperature-Maximum ambient: Controller Card with included Cache-Vault module: 55°C

Operating Voltage (V)+3.3V, +12V

OS-Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. *Visit the downloads page for the most complete list of supported operating systems
