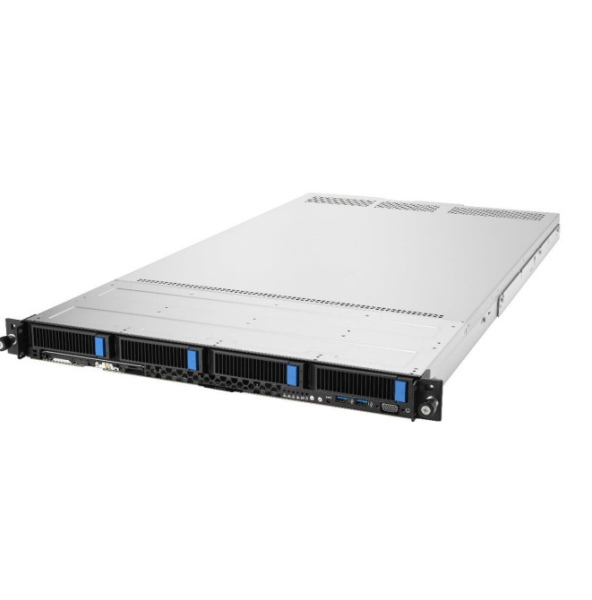

Серверная платформа Asus RS300-E12-PS4  1xLGA 1700 4xLFF 1x350W



https://servers.asus.com/products/Servers/Rack-Servers/RS300-E12-PS4/#Features



ASUS RS300-E12-PS4 is an Intel® Xeon® E-2400 and Intel®Xeon®6300 1U server with support for four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe® 5.0 slot and one PCIe 4.0 slot, plus dual LAN , 80 PLUS® Gold power supply, Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM and chassis-intrusion alert.



Processor / System Bus

1 x Socket LGA1700
Intel® Xeon® processor E-2400 family
Intel® Xeon® 6300 series processor
Intel® Pentium™ processors
*Refer to support page for more information

Generation

E12

Core Logic

Intel® C262 Chipset

Memory

Total Slots :
4 (2-channel)
Capacity :
Maximum up to 128GB UDIMM
Memory Type :
DDR5 4400/4000/3600 UDIMM
Memory Size :
32GB, 16GB, 8GB UDIMM
* Refer to support page for more information

Expansion Slots

Total PCI-E Slots: 3
1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
(optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)

Storage

Storage Controller :
Intel® C262 Chipset
8 x SATA3 6Gb/s ports
SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

HDD Bays

4 x 3.5” Hot-Swap HDD Bays
-up to (4*SATA/SAS/NVMe)
*SAS support only from optional SAS HBA/RAID card
*NVMe support only from optional NVMe upgrade kit

Auxiliary Storage FDD/CD/DVD

1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW / DVD-ROM

Networking

2 x Intel® I210AT + 1 x Mgmt LAN

Graphic

Aspeed AST2600 with 64MB VRAM

Multi-GPU Support

Please find the latest GPU support from
https://servers.asus.com/support/gpu

Front I/O Ports

1 x VGA port
2 x USB 3.2 Gen1 ports

Rear I/O Ports

3 x USB 3.2 Gen 2 ports
1 x VGA port
1 x COM port
1 x RJ-45 ports

Switch/LED

Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED

OS Support

Please find the latest OS support from https://servers.asus.com/support/os

Management Solution

ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet

Regulatory Compliance

BSMI, CE, CB, FCC(Class A)

Dimensions

497mm x 439.5mm x 44mm

Form Factor

1U

Weight

13.47kg

Power Supply

Single 350W 80 PLUS Gold Power Supply
Rating: 100-240Vac, 6.3-3A 60-50Hz, Class 1

Environment

Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
