Серверные материнские платы для сервера или рабочей станции LGA4710, LGA4677, LGA4189, LGA3647, SP6, SP5, SP3 купить в Минске

https://dlcdnets.asus.com/pub/ASUS/server/Z13PE-D16/Datasheet/DataSheet_Z13PE-D16_20231211.pdf

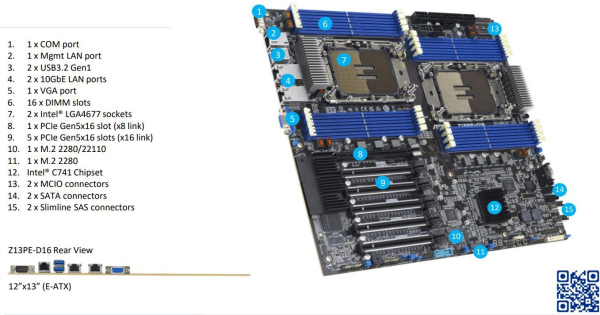

Dual Socket 4th Gen Intel® Xeon® Scalable Processors 5th Gen Intel® Xeon® Scalable Processors Core Logic Intel® C741 Chipset Memory Total Slots 16 (8-channel per CPU) Capacity Maximum up to 4,096GB Memory Type DDR5 5600/4800 RDIMM/3DS RDIMM Memory Size 16GB, 32GB, 64GB (RDIMM) 128GB, 256GB (RDIMM-3DS) *Refer to ASUS server AVL for the latest update Expansion Slots Total PCI/PCI-X/PCI-E/PIKE Slots 6 Slot Type 5 x PCIe x16 slots (Gen5 x16 link) 1 x PCIe x16 slots (Gen5 x8 link) Disk Controller SATA Controller Intel® C741 PCH 10 x SATA 6Gb/s ports (8 by 2 Slimline SAS Connector) Networking LAN 2 x 10Gigabit LAN ports (Intel X710-AT2) 1 x Mgmt port Graphic VGA Aspeed AST2600 64MB Onboard I/O connectors TPM header 1 PSU connector 24-pin SSI power connector + 2 x 8-pin SSI 12V power connectors Management Header Onboard ASMB11-iKVM USB Connector/Header 2 x USB3.2 Gen1 (rear) 1 x USB3.2 Gen1(header, 2 ports) 1 x USB2.0 (header, 2 ports) Fan Header 8 x 4pin SMBus 1 Chassis Intruder 1 M.2 2 Storage 2 x MCIO connectors 2 x SATA connectors 2 x Slimline SAS connectors Rear I/O Ports 2 x USB 3.2 Gen2, 1 x VGA port, 1 x COM port, 2 x 10GbE LAN ports, 1 x Mgmt LAN port Switch/LED 1 x Q-Code/Port 80 LED OS Support Please find the latest OS support from asus.com/event/Server/OS_support_list/OS.html Management Solution Software ASUS Control Center (in-band) Out of Band Remote Management ASMB11-iKVM (BMC AST2600) Dimension E-ATX (12” x 13”) Environment Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% (Non condensing)
